Multi-Purpose Metal Building in Littleton, Colorado
“They were easy to work with and were always on the jobsite making sure things ran smooth. My favorite feature is probably the structure…Their buildings are the best building out there that you could buy… I would recommend them to anybody out there…I dont think there is a better building out there that you could buy.”
Shawn L.
Littleton, CO | Garage Workshop
Metal Building Outlet supplied this metal building in Littleton, Colorado, in October of 2014.

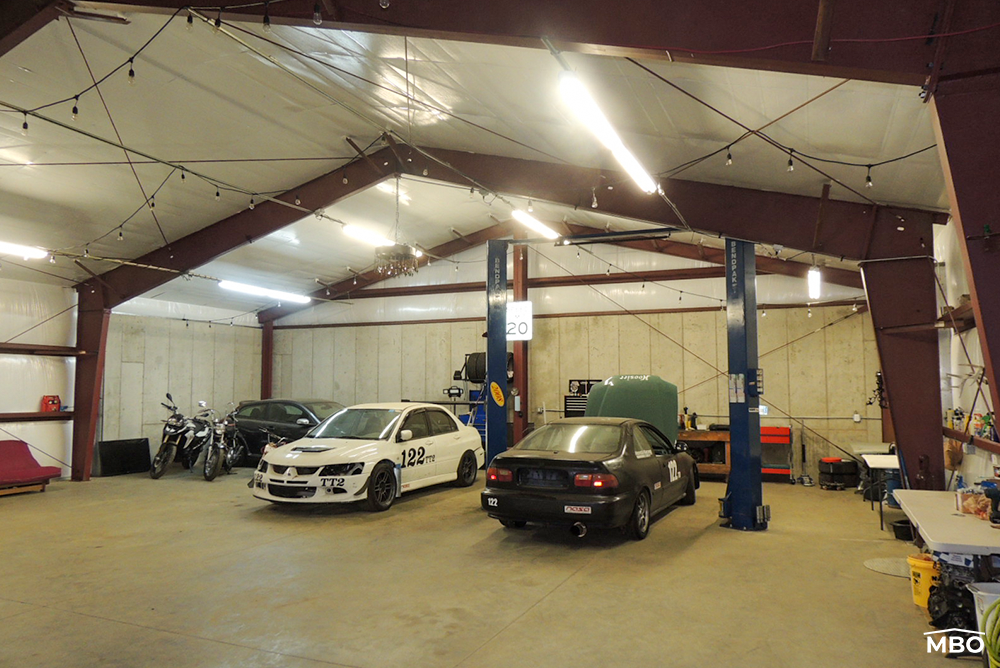

Engineered for a racecar enthusiast and built into the side of a hill, the steel building houses the owner’s collection of racecars, motorcycles and tools and has 2,200 square feet of climate-controlled interior space for storing and servicing racecars. Fabricated to meet the owner’s automotive needs, it has special features throughout ranging from a custom exhaust port for ventilation to a 10’ foundation wall that supports its unique hillside design.
The client chose to partner with Metal Building Outlet after eyeing other company projects, including a building supplied for the Westernaires, an equestrian-focused nonprofit based in Golden, Colorado. The client also works in the construction industry and worked with Metal Building Outlet on a different building in Conifer, Colorado. He decided to purchase his own steel building through the company after seeing its processes and professionalism firsthand.
A Closer Look

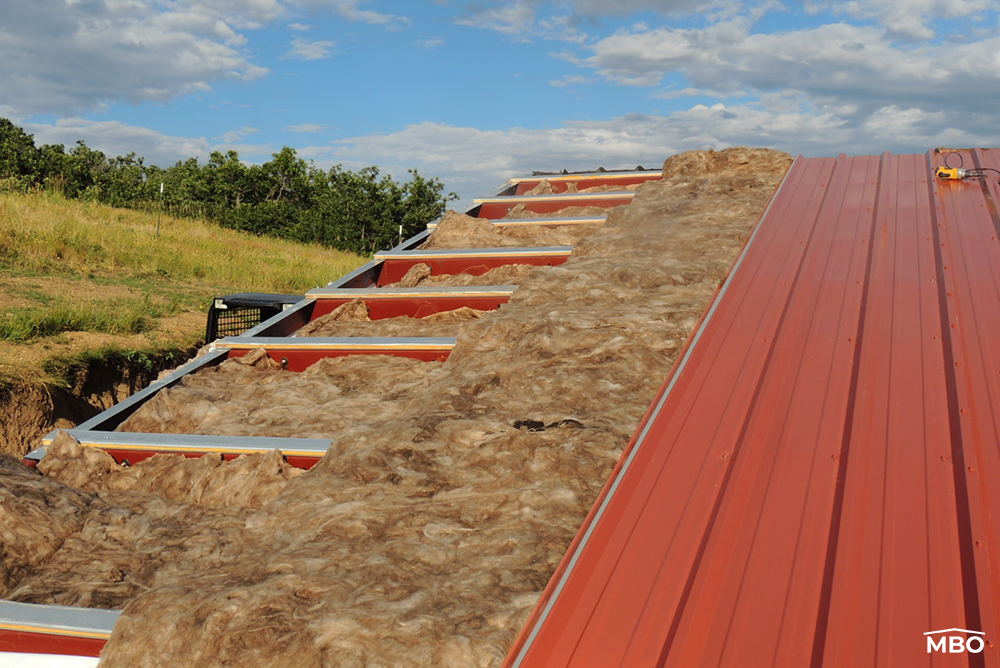

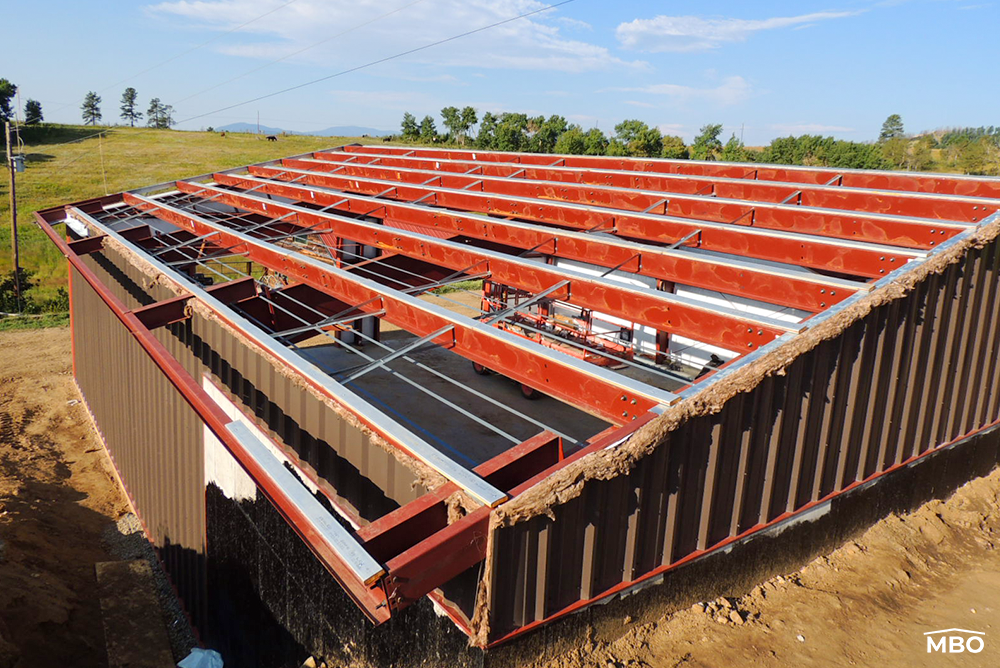

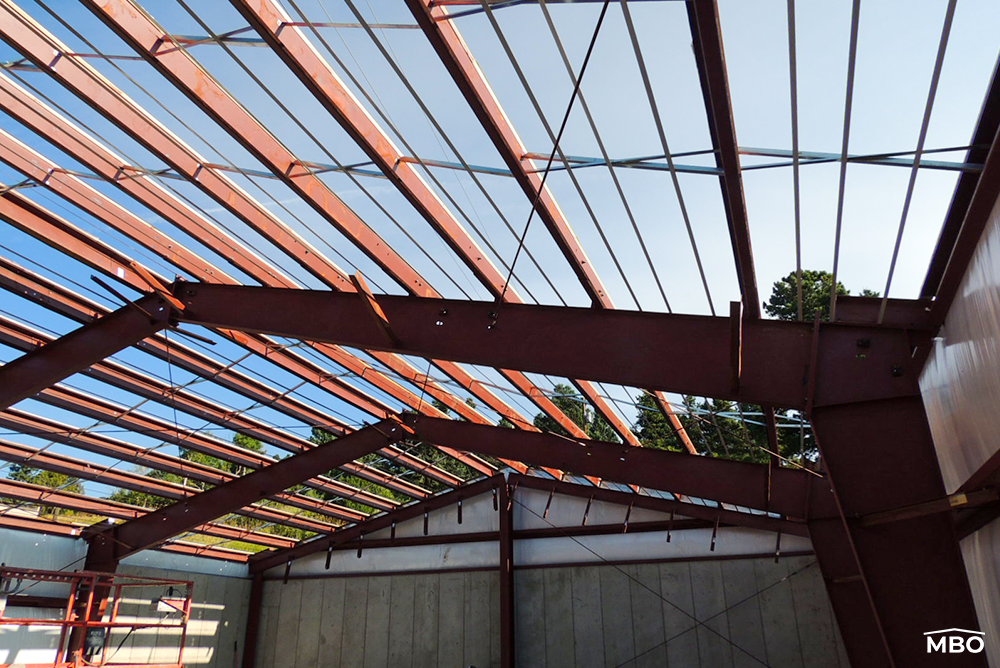

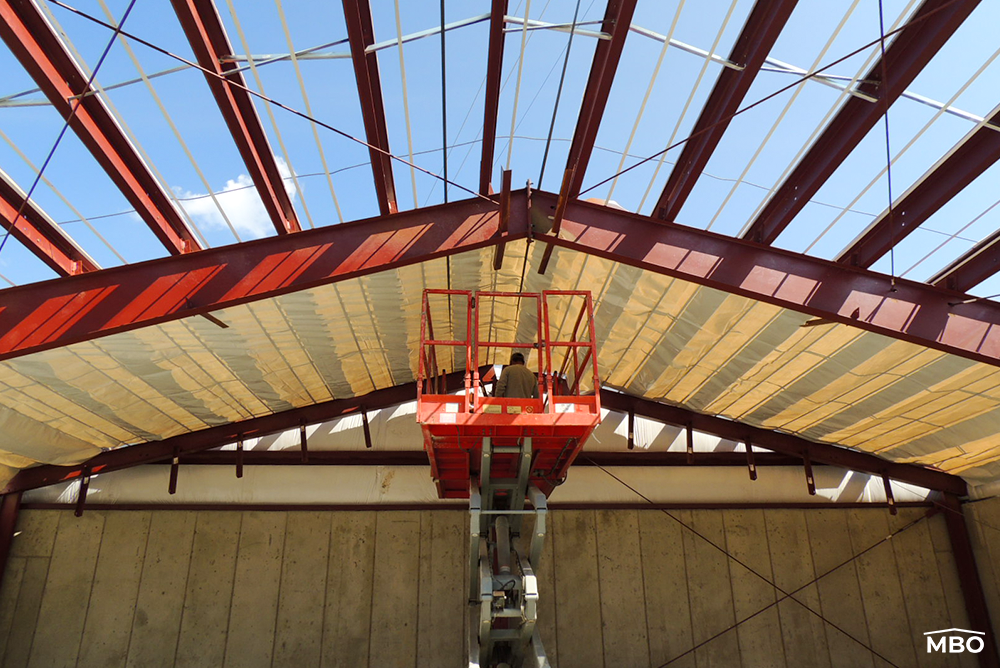

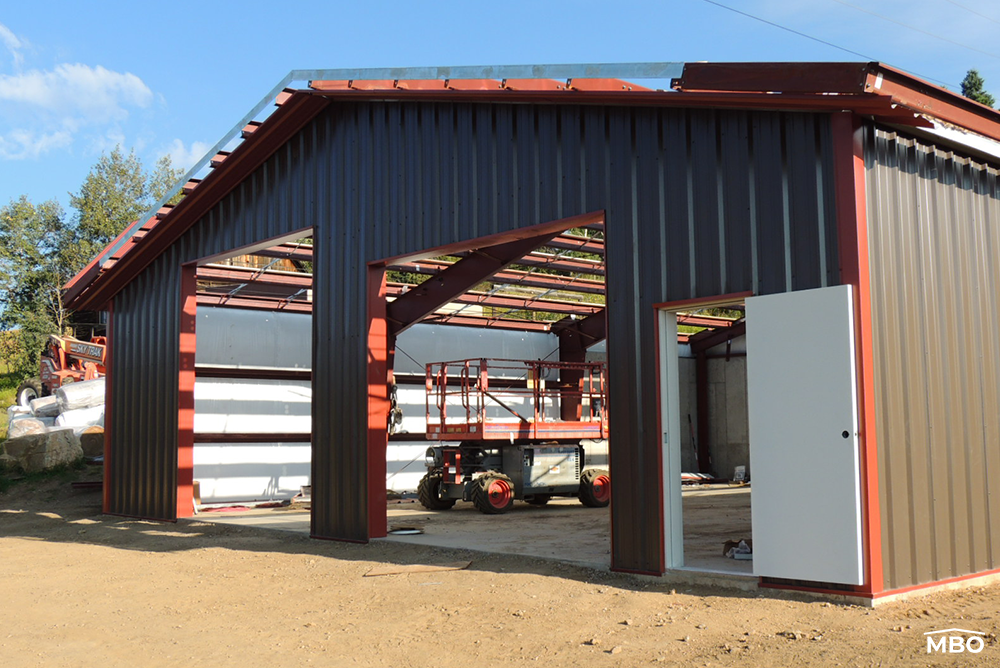

The metal body shop and garage is 45’x50’x14’and has a clear span that creates column-free interior space for cars, bikes and tools. A double-layer, R-30 Energy Saver insulation system in the roof and R-19 insulation in the walls keep the building cool in the summer and warm during Colorado’s cold winters, leading to low year-round energy bills and big savings for the building owner.

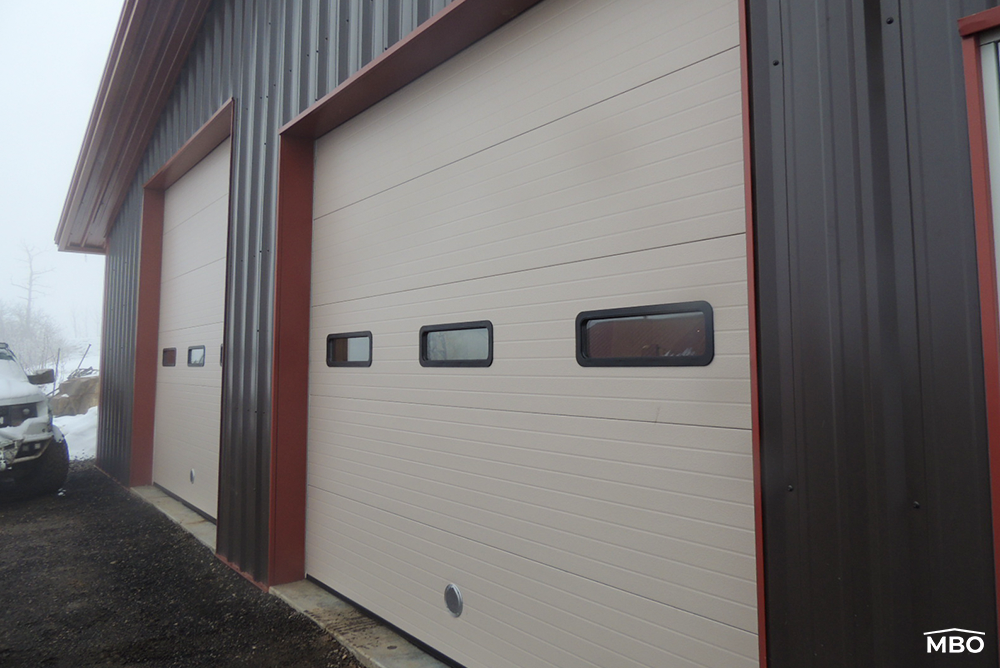

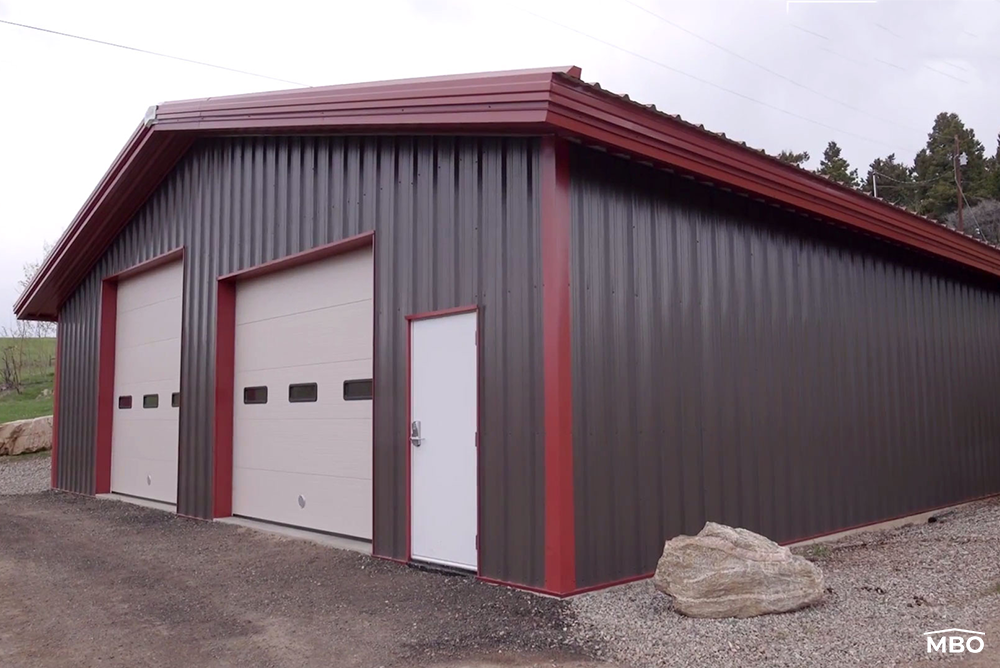

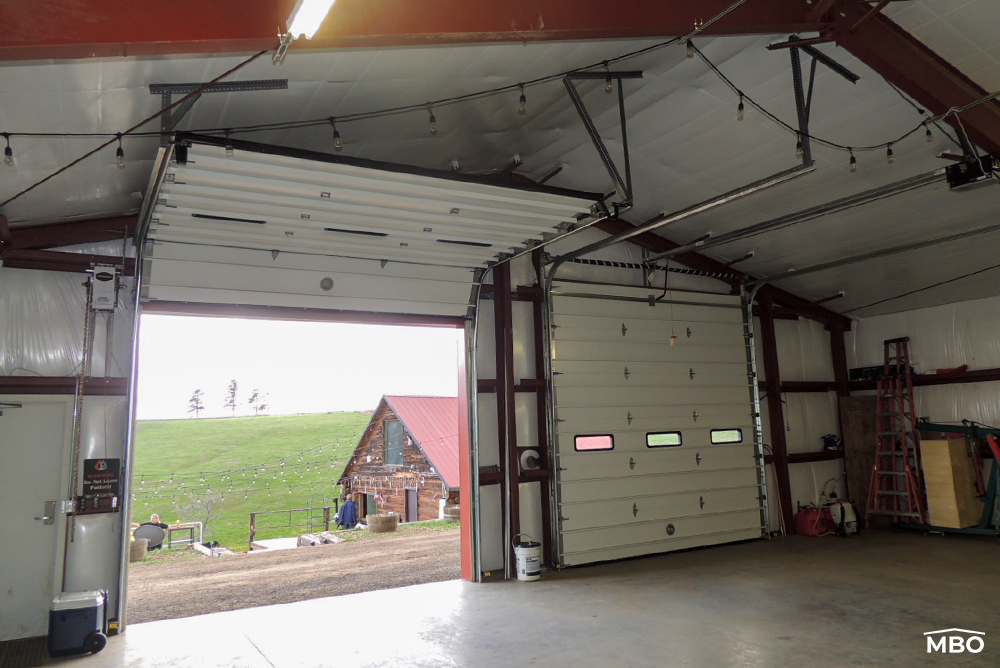

The gray metal building with burgundy trim also has a thermal block acting as a barrier between the roof sheets and the purlins, generating additional energy savings. It also has (3) 12’x12’ garage door openings and (1) 3070 steel walk door opening. The walk door features a high-security lock system that stores up to seven different codes at a time.

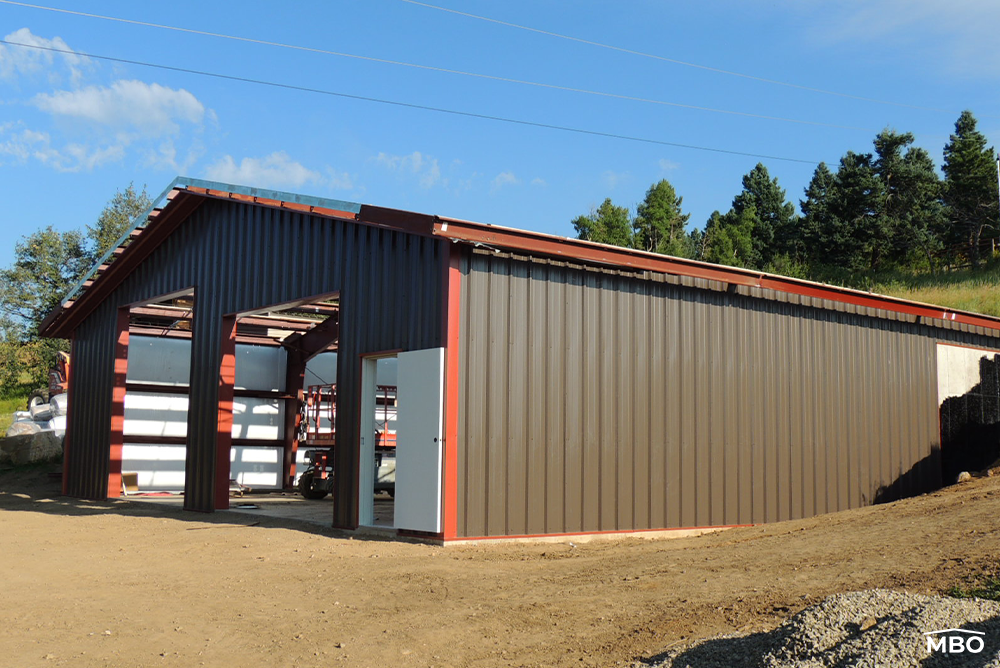

Metal Building Outlet worked closely with the client to accommodate the building’s challenging hillside design, adding a foundation wall and engineering the shop to the area’s precise wind and snow loads. Rugged, low-maintenance and heavily insulated, the steel building protects the owner’s racecars from the elements while serving double-duty as a comfortable, all-season place to work on them.
Building Information and Special Features
Width | 45 |
Length | 50 |
Height | 14 |
Roof Pitch | 3:12 |
Roof Sheeting | 26 Gauge PBR |
Wall Sheeting | 26 Gauge PBR |
Wind Speed | 100 MPH |
Snow Load | 64 PSF |
Doors | (3) 12 x 12 overhead door openings and (1) 3070 steel walk door. |
Insulation | Roof: R-30 Energy Saver Insulation Kit | Walls: R-19 Insulation |
Other Features | 2′ overhang on the front and both sides Back wall built on 14′ concrete |
County | Jefferson County |
Part of Colorado’s Denver – Aurora – Lakewood metro area, Littleton has land in Arapahoe, Douglas and Jefferson counties. It sits 9 miles south of Downtown Denver and about 55 miles north of Colorado Springs.
