Auto Repair Shop in Houston, Texas

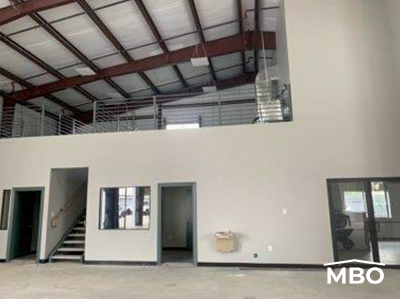

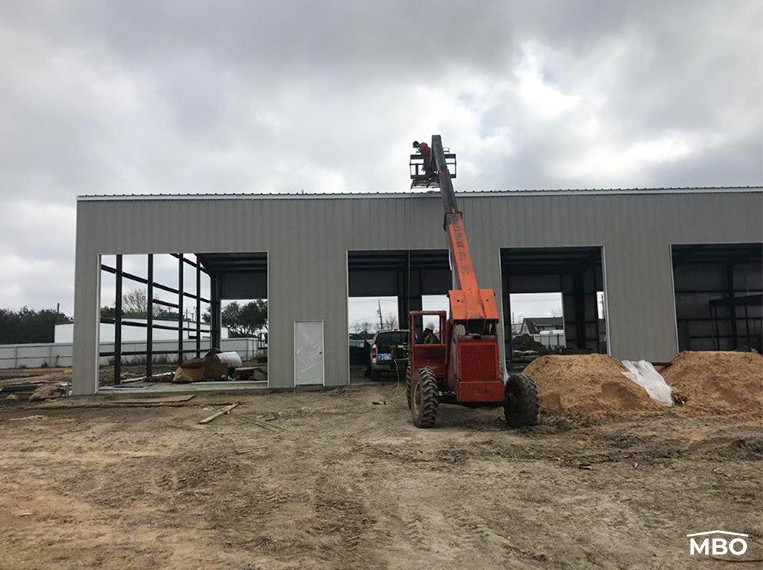

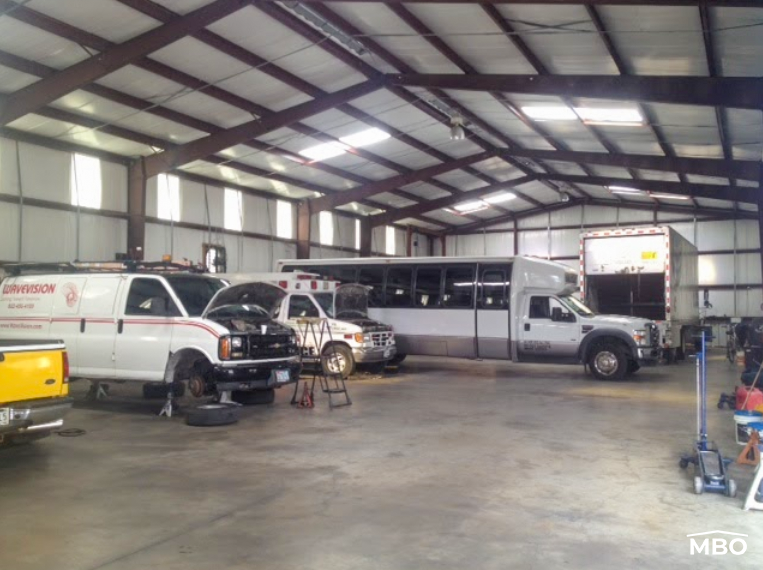

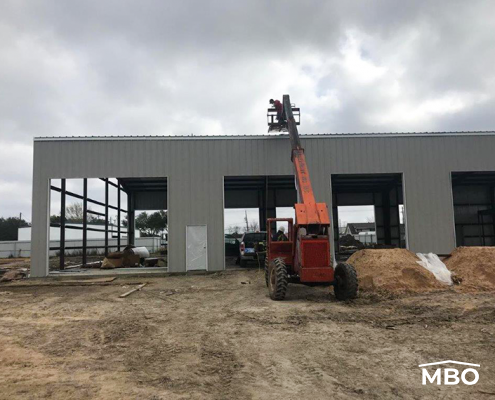

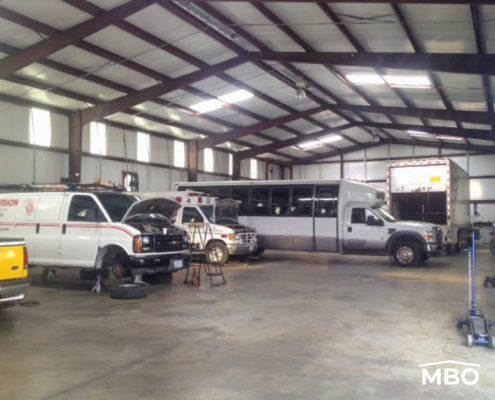

Metal Building Outlet designed and delivered a metal auto repair shop in Houston, Texas in 2018 for Anchias Automotive. The automotive building was designed with your typical open vehicle bays and an administrative office. The customer requested multi floor functionality and clear span space that allows for additional levels, and we included that option in this blueprint as custom mezzanine compatible. This design is limitless in terms of a second floor, storage space or on-site housing with sleeping quarters. Take a look at this commercial metal shop and garage project.

Building Information and Special Features

Width

70′

Length

132′ 6″

Height

26′ 4″

Roof Pitch

2:12

Roof Sheeting

26 Gauge PBR Galvalume+

Wall Sheeting

26 Gauge PBR in Ash Grey

Wind Speed

140 MPH

Snow Load

45.5 PSF

Doors

(2) 3070 Steel Walk Door Openings, (2) 8×4 Framed Openings with Full Trim Package, (2) 8×9 Overhead Door Openings & (8) 12×15 Overhead Door Openings

Insulation

Roof: R-13 Insulation | Walls: R-13 Insulation

Other Features

18×5 Holding Tank Lean-to Building attached
Upgraded Collateral Load for Ceiling Lights
CountyHarris County

Metal Building Outlet not only supplies metal structures, we are the top provider for metal building components. Walking doors, overhead doors, windows, and just ask us about our insulation packages! Is there a certain aesthetic you want to achieve with your building design? Our project managers will provide you with every accessory and component needed for a turn key building & accommodate every unique style.
